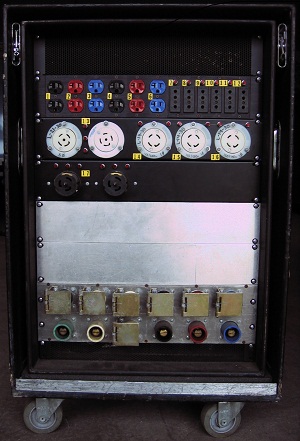

PD 20034

PD 20034

Our rolling rack #PD20034 is a versatile portable distribution rack. It has colson casters and 5/16 recessed coffin locks to hold the front and rear doors on. Power input and pass through is fed via five panel mount Cam-Type connectors. It has six 20 amp edison plugs, six 20 amp stage pin panel mounts, two 30 amp L21-30 3 phase twist-locks, three 30 amp L14-30 220v twist-locks and two 50 amp CS8369 3 phase twist-locks.


Product Features

  • Cam-Type inputs and pass thru's
  • Six 20 amp 110v edison outlets
  • Six 20 amp 110v stage pin outlets
  • Two 30 amp 3 phase L21-30 outlets
  • Three 30 amp 220v L14-30 outlets
  • Two 50 amp CS8369 3 phase twist-locks
  • All circuits protected by magnetic circuit breakers
  • 22.5" x 22.5" x 36" dimensions

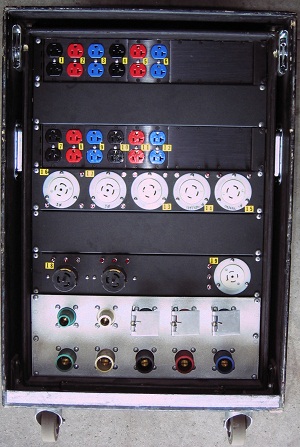

PD 20035

PD 20035

Our rolling rack #PD20035 is a versatile portable distribution rack. It has colson casters and 5/16 recessed coffin locks to hold the front and rear doors on. Power input and pass through is fed via five panel mount Cam-Type connectors. It has twelve 20 amp edison plugs, two 30 amp L21-30 3 phase twist-locks, three 30 amp L14-30 220v twist-locks, one 20 amp L21-20 3 phase twist-locks and two 50 amp CS8369 3 phase twist-locks.


Product Features

  • Cam-Type inputs and pass thru's
  • Twelve 20 amp 110v edison outlets
  • Two 30 amp 3 phase L21-30 outlets
  • Three 30 amp 220v L14-30 outlets
  • One 20 amp L21-20 3 phase twist-locks
  • Two 50 amp CS8369 3 phase twist-locks
  • All circuits protected by magnetic circuit breakers
  • 22.5" x 22.5" x 36" dimensions
