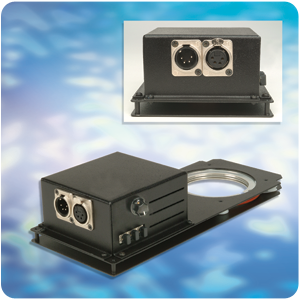

Apollo Smart Move® DMX Rotator

Apollo Smart Move® DMX Rotator

Apollo's Smart Move® rotator is the next generation in gobo moving effects technology. In addition to simple multi-direction rotation, the Smart Move® by Apollo offers an array of individual gobo movements ideal for a broad range of applications. The built-in, pre-programmed microprocessor provides the "smarts", while the rotary switches and speed control dial allow the user to easily set the desired effect and its speed. The Smart Move(R) DMX rotator provides all the features of the Smart Move(R) plus DMX control and indexing.


The Smart Move® gobo rotator holds one or two "B" round gobos, secured by a heavy duty reversible retaining ring which is made of machined aluminum and is secured in place by two spring clips for easy adjustment and replacement. Belt driven for quiet operation, the rotator's black, powder-coat 18 gauge steel provides rigidity and durability. Infinitely variable speed range from 0 to 21 rpm plus rotary switches for easy setting to desired effect plus DMX contol and indexing.

Made in the U.S. of U.S. and imported components.


Product Features

  • Requires a DMX power supply to function
  • Compatible Fixtures: ETC Source Four, Strand SL, Altman Shakespeare, Times Square Q435, and Selecon Pacific (when iris slot cover is removed)
  • Power Supply Compatibility: Smart Power(TM) 75W, 200W,400W, or 600W, Color Q PSU 02-4, Spectra-Q PSU's, Chroma-Q PSU's, and Rainbow PSU's.
  • Dimensions: 11.30" (l) x 4.70" (w) x 2.62" (d) ; 28.7cm (l) x 11.94cm (w) x 6.65cm (d)
  • Gobo Sizes: 1 or 2 B round metal and/or glass
  • Drive System: Silent drive belt
  • Rotation Speeds: Infinitely variable cw/ccw, 0-21 rpm
  • Power Requirement: 24 VDC + DMX 512 1990 Protocol (purchased separately)
  • Power Consumption: .4amps @ 24VDC, 600mA
  • DMX Channels: 3
  • Data / Power Transmission: XLR 4-pin cable (purchased separately)
  • Weight: 3.1 lb. ; 1.40kg
  • Retaining Ring: Reversible for metal or glass gobos (2)
  • Effect Options: 19
  • Effect Settings: 3 rotary switches
  • Ratings: CE and FCC compliant

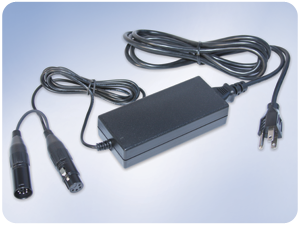

Apollo Smart Power™ 75W Power Supply

Apollo Smart Power™ 75W Power Supply

Smart Power™ power supplies provide 24 VDC to lighting accessories such as Smart Move® rotators and Smart Color® scrollers as well as control indexing devices with a DMX signal.

Do Not Plug Into Dimmed Sources.


Product Features

  • 100-240 volt input, 24 volt output
  • 3.12 Amps
  • 47-63 Hz
  • 75W max
  • Includes 5-pin male XLR: 4-pin female XLR
  • Dimensions: 7" (H) x 3" (W) x 1" (D) 177.8mm (H) x 76.2mm (W) x 25.4mm (D)
  • Weight: 1.5 lbs


Compatible Equipment and Power Needs

  • Apollo EZ Iris - 9.6 watts
  • Apollo Smart Color PRO Scroller - 26 watts
  • Apollo Smart Color Scroller - 38 watts
  • Apollo MXR Color Mixing Scroller - 42 watts
  • Apollo Smart Move DMX - 13.5 watts
  • Apollo Smart Move Vertical - 13.5 watts
  • Apollo Roto-Q DMX - 12 watts
  • AC Lighting Chroma Q Broadway - 22 watts
  • AC Lighting Chroma Q M1, 2, 5, 8 - 36 watts
  • City Theatrical DMX Iris - 8.5 watts
  • DHA Twin DMX - 12 watts
  • Gam DMX Twin Spin - 14.4 watts
  • Gam SX-4, 6 Gobo Tray - 10.8 watts
  • Rainbow 6", 8", 12" Pro Colour Scroller - 14 watts
  • Rosco I-Cue Mirror - 17 watts
  • Rosco DMX Rotator - 6 watts
  • Wybron Forerunner - 14 watts

*Show Lighting Corp is not resonsible for the accuracy of this table, please do your research

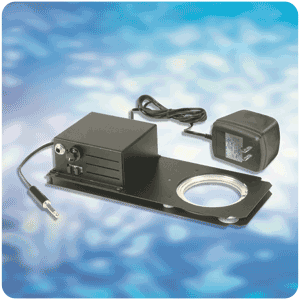

Apollo Smart Move® Gobo Rotator

Apollo Smart Move® Gobo Rotator

Apollo's Smart Move® rotator is the next generation in gobo moving effects technology. In addition to simple multi-direction rotation, the Smart Move® by Apollo offers an array of individual gobo movements ideal for a broad range of applications. The built-in, pre-programmed microprocessor provides the "smarts", while the rotary switches and speed control dial allow the user to easily set the desired effect and its speed. The Smart Move(R) DMX rotator provides all the features of the Smart Move(R) plus DMX control and indexing.


The Smart Move® gobo rotator holds one or two "B" round gobos, secured by a heavy duty reversible retaining ring which is made of machined aluminum and is secured in place by two spring clips for easy adjustment and replacement. Belt driven for quiet operation, the rotator's black, powder-coat 18 gauge steel provides rigidity and durability. Infinitely variable speed range from 0 to 21 rpm plus rotary switches for easy setting to desired effect plus DMX contol and indexing.

Made in the U.S. of U.S. and imported components.

Do Not Plug Into Dimmed Sources.


Product Features

  • Compatible Fixtures: ETC Source Four, Strand SL, Altman Shakespeare, Times Square Q435, and Selecon Pacific (when iris slot cover is removed)
  • Dimensions: 11.30" (l) x 4.70" (w) x 2.62" (d) ; 28.7cm (l) x 11.94cm (w) x 6.65cm (d)
  • Gobo Sizes: 1 or 2 B round metal and/or glass
  • Drive System: Silent drive belt
  • Rotation Speeds: Infinitely variable cw/ccw, 0-21 rpm
  • Power Requirement: 24VDC adaptor supplied with unit
  • Power Consumption: .4amps @ 24VDC, 600mA
  • Data / Power Transmission: 1/4" audio jack transfers 24VDC
  • Power Cord Length: 6 ft./ 1.83m
  • Weight: 3.1 lb. ; 1.40kg
  • Retaining Ring: Reversible for metal or glass gobos (2)
  • Effect Options: 19
  • Effect Settings: 2
  • Ratings: CE and FCC compliant
