Applied's L-16 Crank-Up Lift

Applied's L-16 Crank-Up Lift

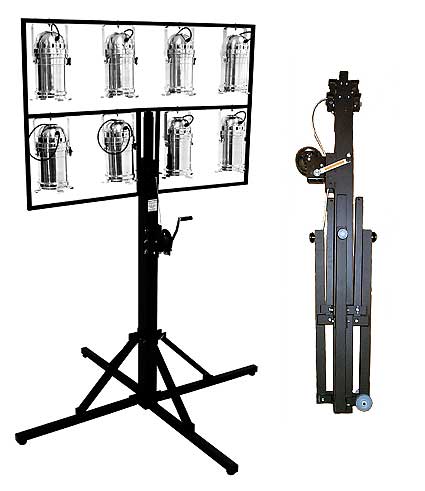

Applied's L-16 Crank-Up Lift is a mobile crank up stand that is easy to transport and set up. Two wheels at the base make it easy for one man to position and set up. Has four leveling feet to level the stand on slightly uneven ground. It has a heavy duty self braking winch to make raising your load (max 500lbs) into position.


Product Features

  • 16' maximum lift height
  • Maximum Weight Rating: 500 lbs. At Any Height
  • Footprint: 84"
  • Folded Dimensions: 12.5" x 12.5" x 77"
  • Weight: 98 lbs.
  • Eighteen Separate Locking Positions
  • 2" Square Top Tube with .188" Wall
  • Collapsible Legs
  • One Man, Two Minute Setup

Accessories Available

  • 1" spud adapter
  • Box truss adapter
  • Tri-truss adapter
  • 1-1/4" pipe top adapter
  • 1-1/4" pipe mast adapter
