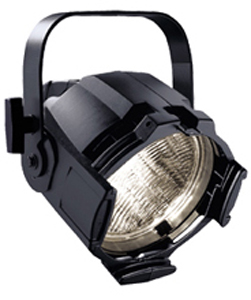

Power, elegance and efficiency -- in a PAR! This is no ordinary par can. Source Four® PARs™ stand out of the luminaire crowd with their rugged die-cast aluminium construction and acclaimed Source Four optical technology. Superior brightness and energy savings. Source Four PARs deliver a smooth even field, and at 575 watts are comparable to 1000W PAR64s -- while saving 40% on energy. Need maximum brightness in wash lighting? The Source Four PAR EA is rated for the incomparable 750W HPL lamp. Changing beam angles is easy: Source Four PAR comes with a set of four snap-in lenses that mount in a cool, rotating ring. That also means no more reaching into a hot can with cracked porcelain sockets. And when you need a new lamp, just use your stock of Source Four HPLs (no need to carry a large inventory of expensive PAR64 lamps). The Source Four PAR's compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, Source Four PARs are perfect for touring.
All of the features and ruggedness of Source Four® pars in a 6 unit bar. These fixtures are mounted on a 90.5" long schedule 80 aluminum pipe which has been fitted with a male panel mount 6 circuit socapex connector and six female panel mount stage pin connectors. The pars are through bolted with one inch milled aluminum spacers between the yoke and pipe. Two Mega-Claw®/half coupler hangers make rigging them a breeze hang on standard two inch truss or pipe. Just hook 'em on, close the gate and tighten it while the clamp holds the weight for you. Combine a few of these with some socapex cable and one of our dimmer racks with socapex on it, and you have an instant rock show!

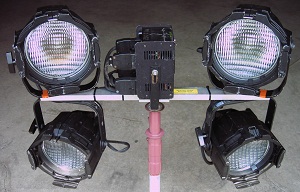

All of the features and ruggedness of Source Four® pars in a 4 unit tree with a DM-406 shoebox dimmer. The fixtures and dimmer are mounted on a 36" long steel square tube. The pars are mounted in a two up two down configuration. The entire assembly is mounted on the stand with a industry standard 1-1/8" spud.
The PAR46 is a low cost, versatile luminaire designed for diverse applications. One unit can serve multiple purposes simply by changing the lamp. The smaller size of the PAR46 is ideal for use in concerts, nightclubs, television, film remotes and architectural applications.
